CONCRETE MIXING MACHINE SBR-100, 100 L, 0.7 KW, 220 V

FOB Reference Price:Get Latest Price
US $131.55-147.84 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Russian Federation
Brand Name:
DENZEL
Motor Power:
0,7 kw
Charging Capacity:
70 L
Reclaiming capacity:
100 L
Speed of Mixing Drum:
27 r/min
Water Supply Mode:
Manual
Working Cycle Period:
120 s
Discharge Way:
Manual Handle
Outline Dimension:
800*720*560mm
After-sales Service Provided:
No overseas service provided
Application:
Concrete mixing
Model Number:
95440
Supply Ability
Supply Ability:
7500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Pallet, Dry container, Truck
Port
Saint-Petersburg, Novorossiysk
Lead Time :
1 week
Product Description

CONCRETE MIXING MACHINE SBR-100, 100 L, 0.7 KW, 220 V


Concrete mixer SBR-100 is an electric concrete mixer that belongs to the range of domestic concrete mixers produced by STROYMASH OJSC (Lebedyan) and is designed for the preparation of concrete mixes with aggregate size up to 40 mm and mortars. The concrete mixer can be used not only in construction, but also in agriculture or farming. A light weight allows you to move the concrete mixer throughout the area of the construction site, homesteading or farm, or raise it to the construction floor.

Powerful and safe electric drive, robust construction, manufacturing technology and quality of materials make it possible to guarantee long-term and trouble-free operation of the concrete mixer SBR-100. The concrete mixer is designed for operation at an ambient temperature of + 5 ° C to + 40 ° C. The electric drive is protected from moisture and belongs to the 2nd class of electrical safety. The transmission gear is closed with a protective cover, which eliminates the possibility of accidental injury to the user.

The warranty period of operation is 12 months from the date of sale. The guarantee extends to all parts of the concrete mixer, without exception.

Concrete mixer SBR-100 is supplied in a package of corrugated cardboard with the size of 750x650x580 mm.

Advantages of the mixer SBR-100:

The concrete mixer is designed and manufactured taking into account the requirements of the regulatory documents in force in the territory of Russia and the EU countries, which is confirmed by certificates of conformity.

Has a modern appearance.

Surface protection is provided by powder paints intended for products operated outdoors. Coloring is done only in precautionary colors (orange for rotating mixing drum), prescribed by GOST.

The control of the concrete mixer is ergonomic and easy.

Concrete mixer SBR-100 has a powerful electric drive, which allows mixing of heavy concrete.

Concrete mixer belongs to the 2nd class of electrical safety. Protection from electric shock is provided by basic insulation and additional safety measures: the motor in drive is mounted on the electrical insulating support, and the connecting wires have fully isolated terminals. The presence of Class II electrical safety implies the use of the product without grounding.

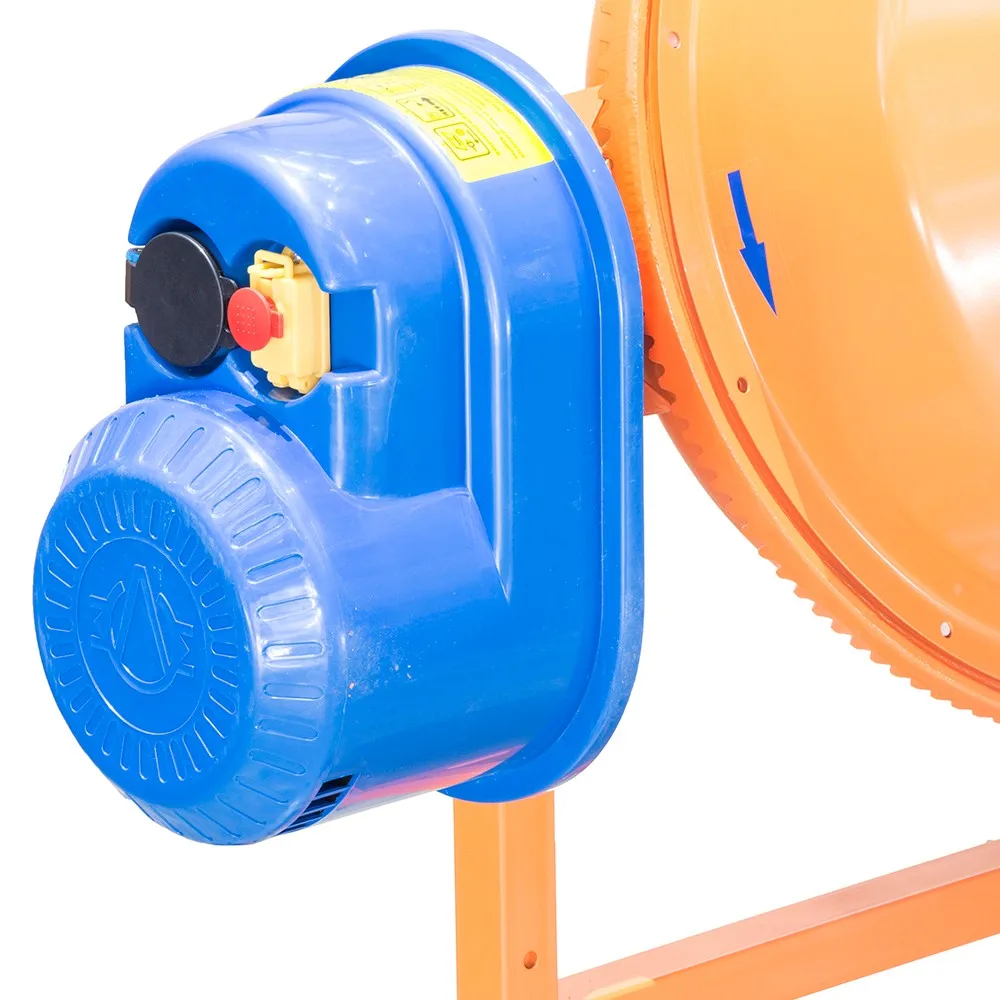

Drive of the concrete mixer is equipped with an electric motor with built-in thermal protection, which allows to switch off the concrete mixer during overload and overheating of the electric motor. The switch integrated in the drive simultaneously protects the concrete mixer from the minimum voltage (i.e., switches off the concrete mixer at low voltage) and, for safety reasons, prevents the concrete mixer from independently starting when the voltage of the electric current is normalized.

The energy efficiency index of the concrete mixer is 0.0007 kWh / L. That means that the concrete mixer is able to produce a large volume of building mixes (concretes and mortars) with low energy costs.

The concrete mixer has a rigid welded frame made of steel pipes and a traverse, the base of which is made of a round steel tube bent on a pipe bender, providing rigidity of the structure. Concrete mixer SBR-100 has high-quality welded seams.

The mixing drum of the concrete mixer is made by the deep drawing method of sheet steel, the drum wall thickness is 1.2 ... 1.5 mm. The parts of the mixing drum can be easily replaced, if non-regular situations occur. The consumer will have no difficulties replacing by his own forces.

The crown of the mixing drum is made of cast iron.

It is possible to adjust the gearing of the pair "the crown of the mixing drum - the drive gear" by means of adjusting washers located under the axis of the mixing drum. This feature opens the way to extend the service life of the gear pair (gears and gear ring). As the above-noted parts are worn, it is possible to remove a number of washers (depending on the degree of wear of the gear pair), keeping the engagement parameters close to the original ones

There are two fixed positions for mixing, for mortars and concrete. The angles of the slope of the mixing drum during mixing are selected most effectively from the ratio "quality of the mixture - mixing intensity - the amount of mixture obtained in one batch".

High reliability and maintainability do not require special tools and devices.

Maintenance of the concrete mixer is minimized - washing and cleaning of the product surfaces from contamination.

The warranty period of operation is 12 months from the date of sale. The guarantee extends to all parts of the concrete mixer, without exception.

Getting any spare part to the concrete mixer in a short time within the Russian Federation and the near abroad.

Overview:

Geometric measurement of drum, л 100 л

Mixing time, sec 100 sec

Nominal rating power, kW 0.7 kW

Size, mm 1120 × 740 × 1300 mm

Weight,kg 48 kg

Ready mix volume, L 40 L

Brand: OJSC Lebedyansky Construction and Finishing Machines Works
